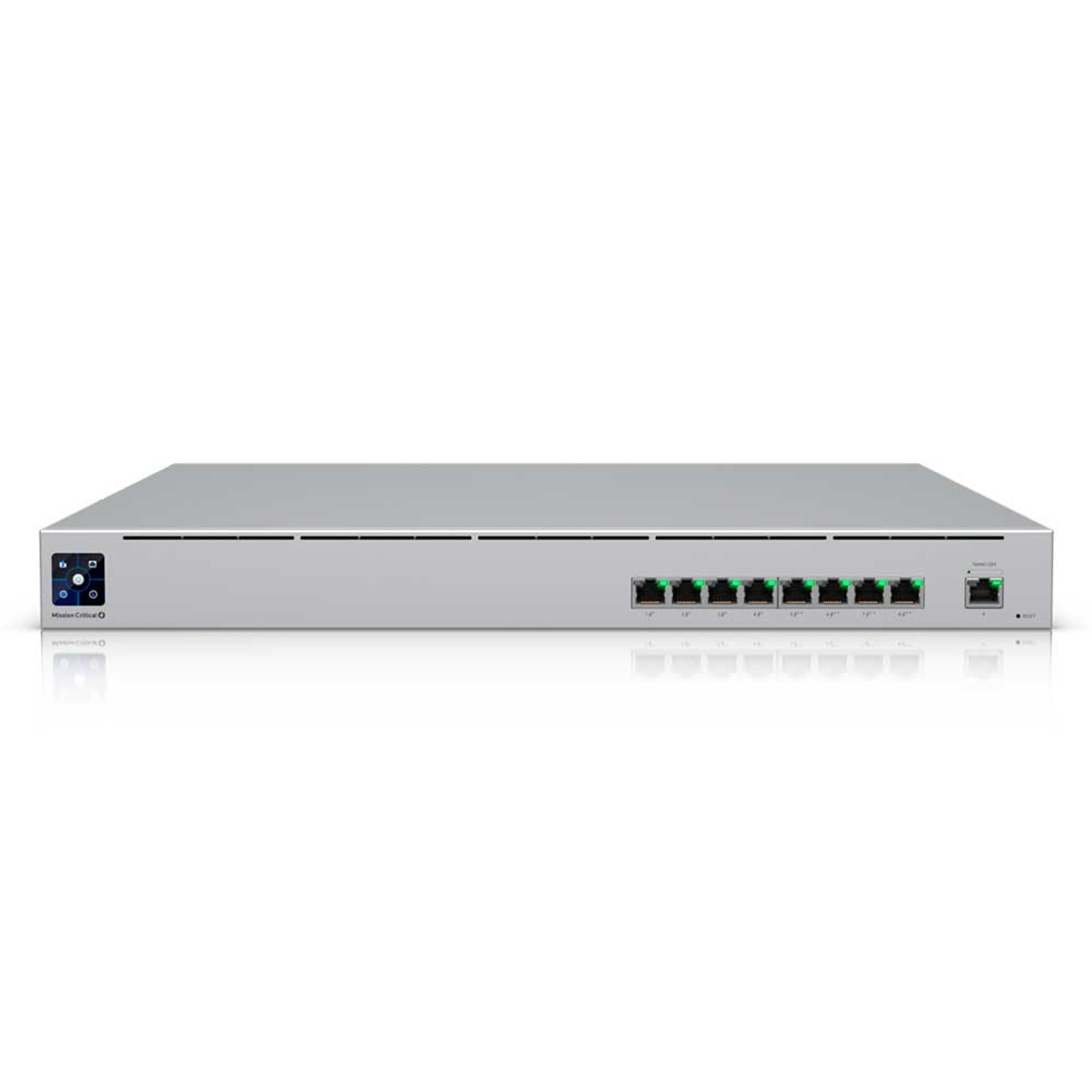

Ubiquiti Mission Critical

Technical Description:

• Mechanical:

  • Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7 in)

  • Weight:

    • Without Mount: 9 kg (19.9 lb)

    • With Mount: 9.2 kg (20.3 lb)

  • Enclosure Material: SGCC Steel

  • Rack Depth Supported: 700–1000 mm (27.6–39.4 in)

• Hardware:

  • Networking Interfaces: (9) GbE RJ45 Ports

  • PoE Interfaces:

    • (4) PoE+ (802.3af/at) ports, 30W max each

    • (4) PoE++ (802.3bt) ports, 60W max each

  • Switching Capacity: 18 Gbps

  • Forwarding Rate: 13.39 Mpps

• Power:

  • Power Input:

    • Universal AC (100–240V, 50/60Hz)

    • External 48V DC battery (not included)

  • Battery Backup: Integrated 368Wh lithium-ion

  • Power Output:

    • PoE: 120W total budget

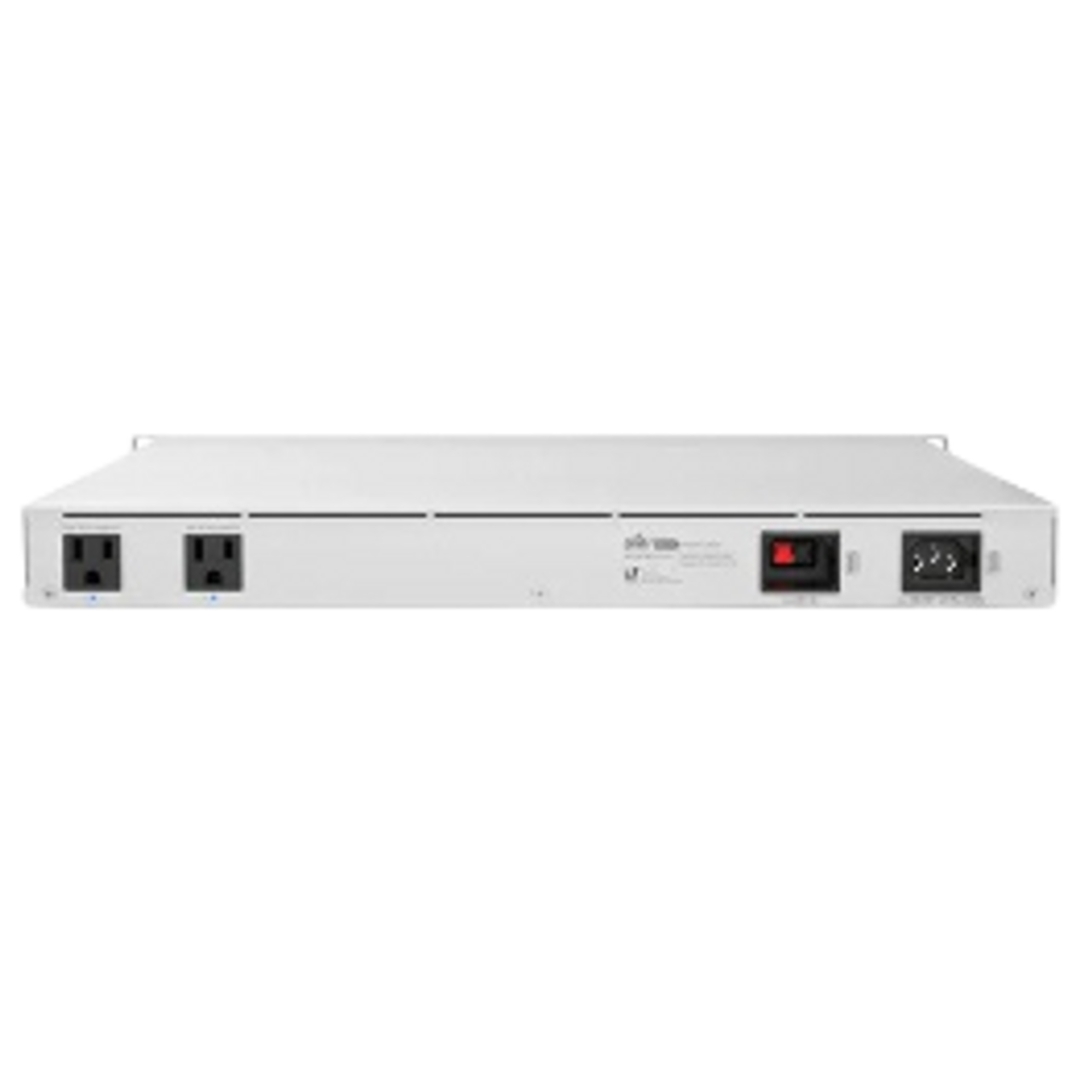

    • AC: (2) 110V outputs, 80W budget

• Environmental:

  • Operating Temperature: -5°C to 40°C (23°F to 104°F)

  • Humidity: 5% to 95% non-condensing

• Certifications:

  • CE, FCC, IC

• Switching Features:

  • VLAN, IGMP snooping, DHCP snooping, LACP aggregation, and more.

  • Security features including MAC blocking and ACL device isolation.

• LED Indicators:

  • Ethernet: Green for 1 Gbps, Amber for 10/100 Mbps

  • PoE: Amber for PoE+/PoE++ activity

  • Power Output: Blue for active state
