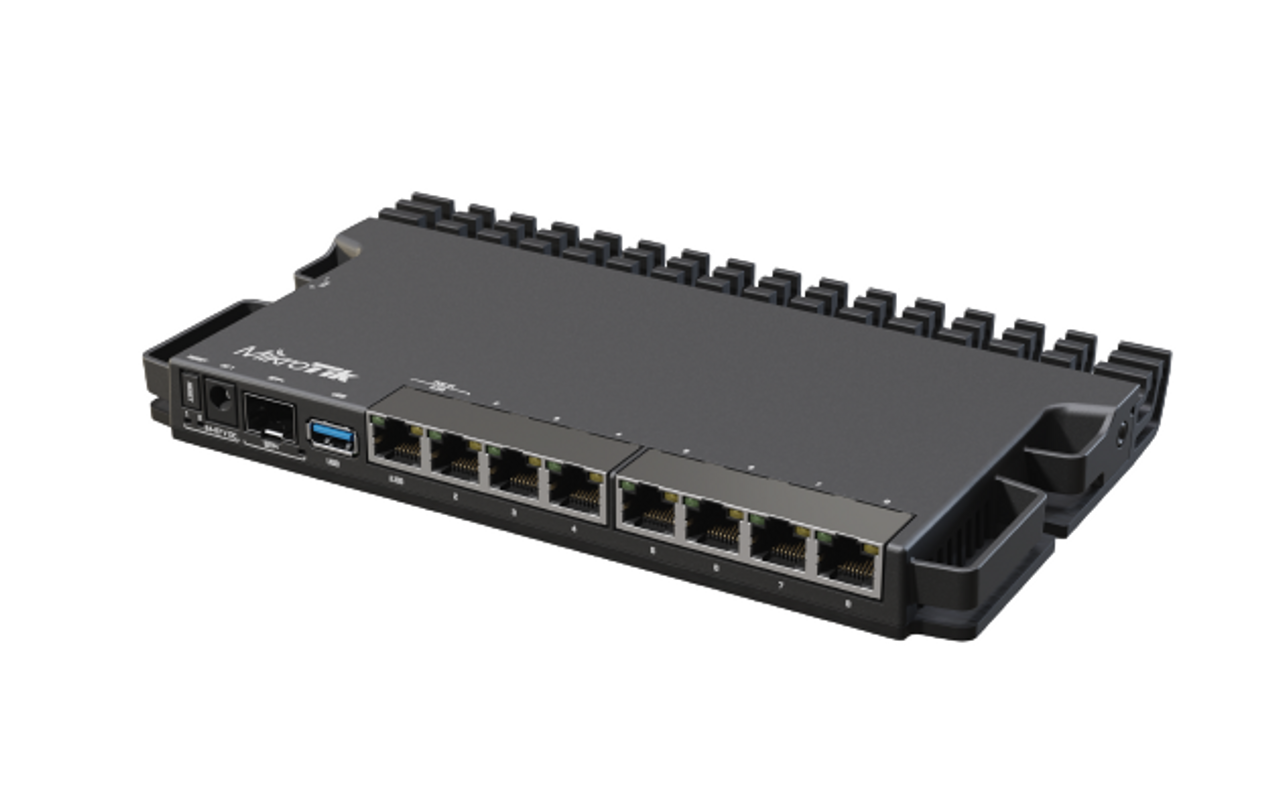

Mikrotik RB5009UG Marvell Armada Router (7) 10/100/1000 Ethernet port

Specifications

• Product code: RB5009UG+S+IN

• Architecture: ARM 64bit

• CPU: 88F7040

• CPU core count: 4

• CPU nominal frequency: 350-1400 (auto) MHz

• Switch chip model: 88E6393

• RouterOS license: 5

• Operating System: RouterOS v7

• Size of RAM: 1 GB

• Storage size: 1 GB

• Storage type: NAND

• MTBF: Approximately 200'000 hours at 25C

• Tested ambient temperature: -40°C to 60°C

• IPsec hardware acceleration: Yes

Powering

• Number of DC inputs: 3 (DC jack, PoE-IN, 2-pin terminal)

• DC jack input Voltage: 24-57 V

• 2-pin terminal input Voltage: 24-57 V

• Max power consumption: 20 W

• Max power consumption without attachments: 14 W

• Cooling type: Passive

• PoE in: 802.3af/at

• PoE in input Voltage: 24-57 V

Ethernet

• 10/100/1000 Ethernet ports: 7

• Number of 2.5G Ethernet ports: 1

Fiber

• SFP+ ports: 1

Peripherals

• Number of USB ports: 1

• USB Power Reset: Yes

• USB slot type: USB 3.0 type A

• Max USB current (A): 1.5

Other

• CPU temperature monitor: Yes

Certification & Approvals

• Certification: CE, EAC, ROHS
